CNC metal cutting is becoming a trend in the field of precision mechanical machining. With its ability to produce highly accurate products, this technology is increasingly favored and plays an essential role in production. Let’s dive into the details of the structure, operating principles, and the outstanding advantages of CNC cutting machines through this article!

What is a CNC Metal Cutting Machine?

CNC metal cutting is a technology that uses automated machinery controlled by intelligent computers to machine metals with high precision. CNC machines can create products that meet exact specifications, minimizing errors during production.

Using this metal cutting machine helps businesses save on labor costs since operators only need to monitor the machine instead of directly machining. With this advanced technology, companies have overcome the limitations of traditional machinery.

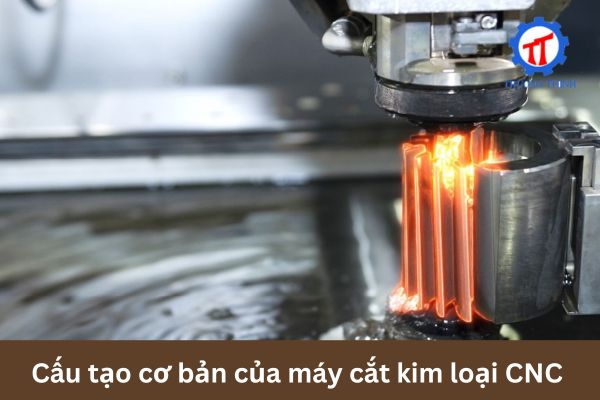

Basic Structure of a CNC Metal Cutting Machine

CNC metal cutting is performed through the coordination of various components. Below is the main structure of a CNC cutting machine:

Control Unit Components

• Motors for each axis: Control the machine’s movement in X, Y, Z directions.

• Machine table: The platform where the material is placed for machining.

• Cutting head and tools: Perform the cutting operation on the metal surface.

• Cooling system: Maintains stable temperature during machine operation.

• Hydraulic system: Found in some older machine models.

Detailed Machine Components

• Machine frame: Protects the entire internal system.

• Workpiece clamp and tool holder: Secures materials during machining.

• Automatic tool changer: Enables quick tool switching.

• Computer-controlled system: Ensures precision during machining.

Popular Types of CNC Metal Cutting Machines

CNC metal cutting machines come in various types, categorized by function and control systems.

By Machine Tool Type

• CNC lathe

• CNC milling machine

• CNC grinding machine

• CNC sawing machine

• CNC drilling machine

By Control System

• Point-to-point control: Machining at a fixed point.

• Linear control: Cutting along a pre-determined straight line.

• Contour control: Machining along curves or complex shapes (2D, 3D, 4D, 5D).

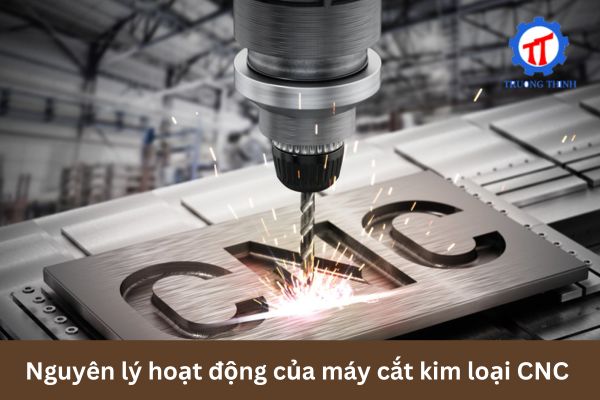

Operating Principles of CNC Metal Cutting Machines

CNC metal cutting operates based on pre-programmed instructions, combined with computer control. The main steps include:

• Machine Startup: Power activates the system and supplies gas to the cutting head.

• Arc Generation: An electric arc ionizes the gas flow to conduct electricity.

• Material Cutting: The cutting head moves along predefined shapes.

• Final Machining: The machine accurately executes cuts based on technical drawings.

Read more: Professional and Affordable Metal Shelving Fabrication

Advantages of CNC Metal Cutting Machines

CNC metal cutting offers numerous advantages over traditional methods:

• High precision: Machining errors are nearly zero.

• Fast cutting speed: Powerful machines enable quick machining.

• Time-saving: Automated processes reduce production time.

• Versatility: Effectively machines various materials, including iron, steel, stainless steel, and more.

Conclusion

CNC metal cutting is an advanced solution that delivers high efficiency in mechanical machining. With modern technology, CNC machines help businesses boost productivity, save costs, and ensure product quality. Stay tuned for more insightful articles about precision machining!
