CNC milling is becoming a core foundation in the precision engineering and modern mold manufacturing industries. Thanks to automation capabilities, high accuracy, and the ability to machine complex geometries, this technology helps businesses optimize costs, shorten production time, and improve product quality.

What Is CNC Milling and How Does It Work?

CNC milling operates based on the combination of the rotational movement of the cutting tool and the linear movement of the workpiece along the X, Y, and Z axes. For 4-axis or 5-axis machines, additional rotary axes are integrated to process curved, inclined, or complex geometries.

The basic operating process includes three steps:

• CAD Design: Create a 2D or 3D model of the component.

• CAM Programming: Convert the drawing into G-code.

• Automated Machining: The CNC machine reads the commands and performs precise cutting according to the program.

Thanks to this closed-loop process, errors are minimized, ensuring stable quality in mass production.

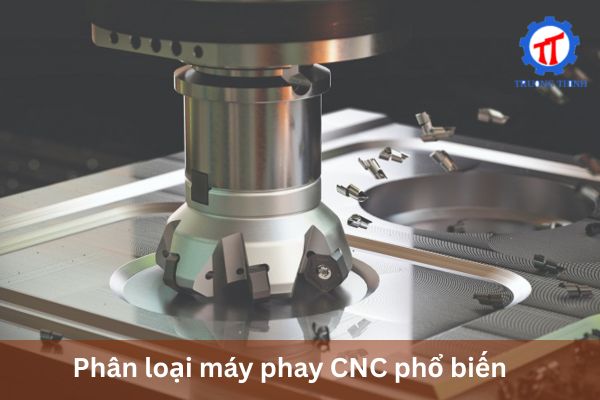

Common Types of CNC Milling Machines

CNC milling is performed on various types of machines depending on technical requirements.

Classification by Number of Axes

• 3-axis CNC machine: Suitable for simple components.

• 4-axis CNC machine: Includes an additional rotary axis for side machining.

• 5-axis CNC machine: Capable of machining curved, twisted, and complex surfaces.

Classification by Structure

• Vertical milling machine: The spindle is perpendicular to the worktable, ideal for molds and deep cavities.

• Horizontal milling machine: Suitable for large, heavy parts or deep grooves.

This diversity allows businesses to operate flexibly across different manufacturing sectors.

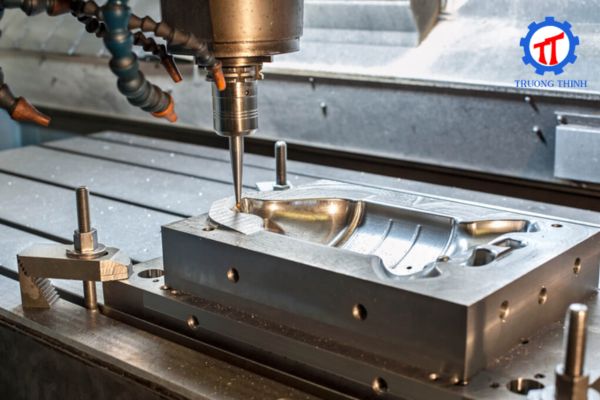

Mold Manufacturing Process Using CNC Milling

CNC milling in mold production typically goes through the following main steps:

• Designing a 3D mold model using specialized software.

• Programming optimized toolpaths to ensure efficiency and surface quality.

• Preparing mold steel materials such as P20, S50C, and H13.

• Rough milling: Removing the majority of excess material.

• Finish milling: Achieving required surface smoothness and precision.

• Inspection and assembly: Ensuring the mold meets technical standards before plastic injection.

See more:
https://cokhiphutrotruongthinh.com/cac-loai-may-gia-cong-cnc-pho-bien-nhat-bv.html

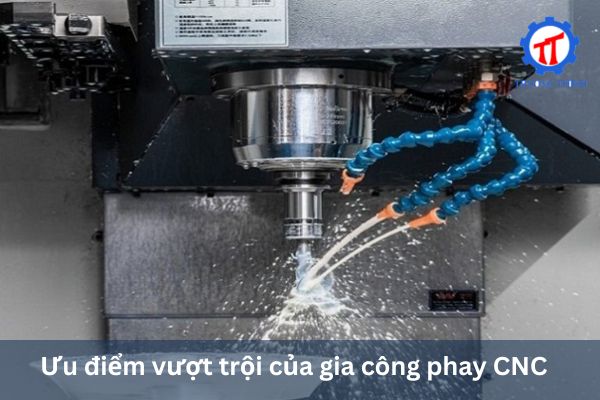

Outstanding Advantages of CNC Milling

CNC milling not only enhances product quality but also optimizes the entire production system.

• Improved accuracy: Tight tolerances and smooth surfaces.

• Long-term cost optimization: Reduced scrap rates and labor costs.

• High flexibility: Easy design modifications.

• Extended mold lifespan: Precisely machined components reduce wear.

In the Industry 4.0 era, this technology is further integrated with AI and smart monitoring systems to optimize processes and enable predictive maintenance.

Truong Thinh Mechanical – Precise and Reputable CNC Milling Services

CNC milling at Truong Thinh Mechanical is carried out using modern machinery systems, meeting high-precision requirements for mechanical parts and mold manufacturing. With a team of experienced engineers, strict quality control processes, and the ability to handle a wide range of materials, Truong Thinh is committed to delivering optimal technical and cost-effective solutions for manufacturing businesses.

Conclusion

CNC milling is a crucial foundation in precision engineering and modern mold manufacturing. Thanks to automation, high accuracy, and design flexibility, CNC milling at Truong Thinh Mechanical has helped businesses improve product quality, optimize costs, and shorten production time.
